Connecting the SVD  -  Using   -  General Trouble Shooting   -  H89 Trouble Shooting   -  Supported Features   -  Finding Diskette Images

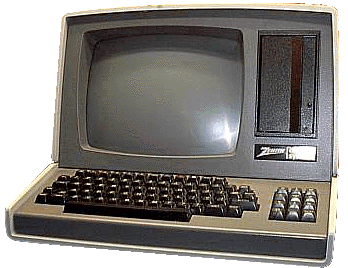

Connecting the SVD to the Heathkit H89 (Z89)

The H89/Z89 is a very nice machine that provides quite a bit of flexibility when connecting an external floppy drive or the SVD. The two are equivalent machines for the purposes of connecting an SVD, and I'll just refer to them both as the H89.

One of the best features of the H89 is its ability to boot from an external floppy device. This means that you can leave the internal drive in place, and not open the machine, but still be able to boot directly from the SVD. With a few exceptions, booting from an external drive is just as good as booting from an internal drive.

So, you may ask, when is it NOT as good? Sometimes programs refer to the physical drive number as opposed to the logical drive number. When booting from an external drive, the physical number doesn't change, just the logical number.

When looking at the back of the H89, the stripe indicating pin #1 should be on the right side of the connector. Imagine flipping the ribbon cable connector shown here over to plug into the H89. The stripe (pin #1) would be on the right side. It is very important that you get the orientation of pin #1 correct.

It is best to use the cable that came with the machine, but any 34-conductor ribbon cable with the right connectors will work. The other side of the cable needs to have a edge-card connector which was also the standard for the day. The SVD comes with an extra 34-pin edge-card connector for your convenience. Note that if the cable you use has drive-selecting "pulled-pins" on the edge-card connector then you should refer to the pulled-pin discussion on the TRS-80 Model I page regarding this type of cable.

When connecting external floppy drives (or the SVD) to the external floppy connector one of the external floppy drives on the cable needs to be "terminated". The terminated drive should be the last one on the cable.

NOTE: You must use one of the supplied connectors with the SVD. For information on these connectors, click here .

External Connection

The external floppy connector for the H89 is on the back of the machine near the bottom as illustrated by this picture.

The connector is a standard 34-pin box header which was common for this vintage of machine. To connect the SVD (or any external floppy for that matter) you need to have an appropriate mating connector attached to a 34-conductor ribbon cable, like this:

.

Supported Controllers

The only supported controller for the H89 is the stock single-density hard-sectored controller. In particular, the soft-sectored controller is not currently supported. People have tried to use it, by-the-way, but haven't yet reported any success.

If you have a soft-sectored controller, please let me know if you are able to get the SVD to work with it. Contact me for important information regarding getting the soft-sectored controller working with the H89.

Drive Select Weirdness

The floppy controller for the H89 has one very weird feature: the drive select lines are backwards relative to all of the other machines of the vintage. This really isn't a big issue, just something you need to know. The "standard" floppy interface of the vintage supported 3 or 4 floppy drives. Nearly all of the machines using the interface used the same signal lines for the same floppy drive...all but the H89 (as far as I know).

The effect of this weirdness is that the SVD signal lights are backwards from what you would normally expect. So when when the H89 is accessing drive # 0 (the internal drive) the SVD will indicate that it is accessing drive #2. And when the H89 is accessing drive #2, the SVD will indicate that it is acessing drive #0. I guess the one silver lining is that drive #1 looks like drive #1!

NOTE: the SVD Control Program software has an option that maps the virtual drive to the right H89 floppy number. This option is normally set, though you can turn it off if you like.

The effect of the option is that when you download drive #2 to the SVD, it will cross-over to drive #0 taking into account the signal weirdness. This does NOT affect the indicator lights which will still be backward.

Floppy
Number
Normal Signal
Pin Number
H89 Signal
Pin Number
# 01014
# 11212
# 21410

Using the H89/Z89 with the SVD

Booting from the SVD

H:

I love the "H:" boot prompt on the H89. From this prompt you can boot the machine from any of the floppy drives connected to the H89, including the external drive(s). So, assuming that you have the SVD connected to the external controller, and that the cable you used isn't one of the "pulled-pin" drive selecting cables, the SVD can act as either drive #1 or drive #2. The internal drive always acts as drive #0.

1.

Download a Boot Image to the SVD

Once you have the SVD connected, download a boot image to virtual floppy #1. This is done by clicking on the "Load..." button. For these examples I chose "List of Files" and then the HDOS 2.0 entry in "Operating Systems." Don't forget to click on "Download All" to get the image transferred to the SVD.

2.

Reboot the H89

Once you have the image downloaded to the SVD, it is simply a matter of rebooting the H89. If it is already on, you can press SHIFT-RESET.

3.

Choose the Boot Drive

Here's where the magical H: prompt comes into play. By pressing the letter "B" in response to this prompt, the H89 responds with "Boot". Then you can press the number of the drive you would like to boot from, in this case, drive #1:
H: b1 (enter)


4.

Boot HDOS 2.0

SPECIAL NOTE: you're not done! After pressing (enter) to the boot prompt, the H89 has only started the HDOS booting process. The first thing that it does from there is wait for you to press the space bar a couple of times. Then you will get the HDOS boot prompt, to which you can just hit (enter).

After following this procedure, the H89 will boot HDOS off of the SVD which is really floppy #1. The nice part, however, if that HDOS will refer to the boot drive as SY0: no matter which floppy it is connected to.

When booting from a floppy other than #0, the SY devices will be rotated after boot. So in the case of booting from floppy #1,
SY0: will refer to floppy #1,
SY1: will refer to floppy #2, and
SY2: will refer to floppy #0 (the internal floppy).

H: b1(enter)

(space) (space)

ACTION? <BOOT> (enter)


Sample Directory Listing

> DIR (enter)

NAME    .EXT    SIZE      DATE            FLAGS   02-JUL-77

EDIT    .ABS    17      03-NOV-80        W
BASIC   .ABS    17      03-NOV-80        W
PATCH   .ABS    17      03-NOV-80        W
INIT    .ABS    17      03-NOV-80        W
SYSGEN  .ABS    17      03-NOV-80        W
TEST17  .ABS    17      03-NOV-80        W
TEST47  .ABS    17      03-NOV-80        W

   7 FILES, USING 181 SECTORS (0 FREE)
>_


Running a Program

Once you are able to "list" a virtual floppy from the SVD, running programs is easy. Here are a couple of examples of running programs from some disks.

1.

Basic Program

Running basic programs on H89 requires that you first start BASIC. On the supplied HDOS 2.0 image there is Benton Harbor BASIC. You simply type "BASIC" to get it running.

NOTE: You should NOT use the write-protect setting for the HDOS image when running BASIC. For some reason, BASIC requires that the write-protect not be on. Weird.

After you are in BASIC, you can "RUN" a BASIC program directly. Or, you can use the somewhat odd function called "OLD" to load a BASIC program off of the floppy. You can either specify the file extension ".BAS" or if you don't, it will be assumed.

 > BASIC (enter)
EXTENDED BENTON HARBOR BASIC #110.06.00

* RUN "PROGRAM.BAS" (enter)


2.

Non-basic Programs (binary)

Running a binary program (or ".ABS") is easy, just type in its name. If the file is on a different diskette, other than SY0:, you can prepend the drive number such as "SY1:PROGRAM.ABS".

 > PROGRAM (enter)
...


3.

Programs on Other Drives

Accessing drives other than the boot drive (SY0:) requires that you "MOUNT" the drive first. Here's an example of mounting virtual drive #2 from the SVD. This assumes that you've downloaded an image to both virtual drive #1 and virtual drive #2. Remember, as in the note above, that after HDOS has booted from drive #1, that drive #2 is actually called SY1:.

 > MOUNT SY1: (enter)
...
 > SY1:PROGRAM (enter)


Creating a REAL floppy from an SVD image

One of the best things about the SVD is that it allows you to both:

  • create real floppies from a floppy image
  • backup your real floppies to an image that you can upload to your PC

Here is an example of making a real copy of the HDOS 2.0 diskette. This example assumes that the SVD is connected to the external floppy connector, and you have downloaded the HDOS 2.0 image to it as drive #1. Further, it assumes that you have already booted from the SVD as described above.

1.

Format the real floppy

The first thing to do when making a copy of an image is to format the real floppy. There are a couple of things to remember when using the internal floppy in this situation:
  • Since you booted from drive #1, the internal floppy takes on the logical identifier of SY2:
  • The write protect tab on the real floppy goes DOWN when using it in the internal drive.
  • You must use hard-sectored disks for the stock floppy/controller in the H89.

It isn't completely necessary to format the floppy first, if it has been formatted before. But it isn't a bad idea. Note, however, that you should never try to format the image in the SVD! More on this in the next section.

 > INIT SY2: (enter)
...


2.

Copy the SVD Image

After formatting, it remains to copy the data from the SVD to the real floppy. Assuming you have a formatted floppy in SY2: (the internal drive) then use the "SYSGEN" command to copy the floppy.

Note that "SYSGEN" is used to create Bootable floppies. That is, it copies the boot data to the target diskette as well as other files when you specify the pattern "*.*" as in this example. SYSGEN will ask you to specify the source and target for the command.

If you don't need to create a bootable floppy, you can simply use the "COPY" command as shown here.

 > SYSGEN *.* (enter)
...


or

 > COPY SY2:*.*=SY0:*.* (enter)
...


Creating an SVD image of a REAL floppy

To make a virtual copy of one of your real floppies, essentially you simply reverse the floppy drive numbers in the command above...but there is another important step as described below.

1.

Download a Floppy Image to the SVD

There is a "blank" floppy image that comes with the SVD software. It is best to download that image to the SVD so that you have more room for files. You can download any image you like, but you may have to delete some files from the image to make space.

Think of this step as simply putting a blank diskette into a real floppy drive. The SVD needs this "blank diskette" too.

It is important to note that this blank diskette has already been formatted. You cannot format an image in the SVD, it must be done ahead of time.


2.

DO NOT try to format the SVD image

Unlike in the above example, when making a real floppy, you should NOT try to format the image in the SVD.

The SVD emulates generation of the sectors as well as the format of the sectors. "Formatting" of the image is, therefore, not necessary. It isn't fatal to the SVD, but it will mess up the image causing you to have to download the blank image again.


3.

Copy the Real image

After downloading the blank, run the command that will copy the real floppy to the blank in the SVD. This is just like when copying to a real diskette as described above.

 > COPY SY0:*.*=SY2:*.* (enter)
...


IMPORTANT NOTE: you must be sure to turn OFF the WRITE-PROTECT checkbox in the SVD Control Program software for the blank diskette you are downloading. Otherwise the blank diskette won't be writable.

ALSO, if you use the "COPY" command, you must turn off the write protect for the source diskette your are copying FROM. Weird but true. HDOS scribbles some info on the diskette you are copying from and the "COPY" command won't work otherwise. "SYSGEN", however, will work without turning off write-protect on the source diskette.

Note that in the example to the right, that the diskette numbers are reversed from those in the above examples.


4.

Upload the new image to your PC

Now you need to return to the PC, and upload the changed image from the SVD back to the PC. Please see the PC Software reference pages Section 5 - Uploading a floppy image for information on how to do this.

5.

Save the new image

Finally, you can save the uploaded image to a new PC file. Again see the PC Software reference pages Section 6 - Saving a floppy image for more information.

Setting Options

One very annoying thing about the vanilla HDOS image is that is shows backspaces as slash-letter, indicating what letters are being erased. You can fix this problem by issuing the right "SET" command.

In the example here, the "SET" command is issued that sets the backspace to actually erase the character. If you want this effect to be set "permanently" you should do the following:

  • Turn off the write-protect for the downloaded HDOS boot image
  • Execute the SET command as shown here
  • Upload the changed HDOS image to the PC and store it in a new file
Then you can use this modified HDOS image to boot from. Just as if you had made a back-up image of a real HDOS floppy and customized it.

 > SET TT: BKS (enter)


Booting & Using CP/M

I'm a big CP/M fan. In the SVD Control Program (SVD CP) software there are a couple of CP/M images. You can use these to boot the H89 with CP/M. One of the images contains Supercalc too.

In addition to being able to boot from CP/M, you can use the SVD CP to download single files to the H89. Check out the software section for more information. Section 4 - Downloading a file

General Trouble Shooting (non Apple 2)

Can't boot from the SVD

When your vintage computer won't boot from the SVD there is often a simple problem that you can correct. The LEDs on the SVD can help you figure out the problem. Follow these steps to do so.

  1. Plug the SVD into the floppy cable.
  2. Make sure that the computer is off. Or in in the case of an external floppy controller (as with the TRS-80 Model I Expansion Interface) make sure it is off as well.
  3. Looking at the LEDs on the SVD, you should see only the Power LED lit. Here are a few different possibilities for the SVD LEDs:
    Power
    Disk 0
    Disk 1
    Track 0
    Write
    This is what you should see. The SVD is getting power and the cable appears to be connected correctly...at least so far so good.
    Power
    Disk 0
    Disk 1
    Track 0
    Write
    (all LEDs off) The SVD isn't receiving power. Check the power connector and the power supply.
    Power
    Disk 0
    Disk 1
    Track 0
    Write
    If the Disk 0 and 1 LEDs are on as well as the Write LED, then you most probably have the floppy cable connected "backwards". Be careful to note where the cable stripe is as well as the plastic key on the connector. Worse come to worse, just try reversing the connector.
  4. Download a bootable image to floppy #0 on the SVD from the PC Software.
  5. Turn on the external floppy controller if there is one, then turn on the main computer. This should cause it to try to boot from the SVD. When you turn the main unit on, watch the LEDs on the SVD, and compare to the following:
    Power
    Disk 0
    Disk 1
    Track 0
    Write
    When trying to boot from the SVD, the SVD Disk 0 LED along with the Track 0 LED should come on. This indicates that the computer is trying to boot from Disk 0 and that the SVD is responding with data from the first track of the downloaded floppy image (Track 0). Note, however, that the Track 0 light will only come on for a short time. As soon as the boot process gets going, the computer will "seek" the virtual drive to a different track, causing the Track 0 LED to go out.
    Power
    Disk 0
    Disk 1
    Track 0
    Write
    BE CAREFUL - the Track 0 LED may have come on for a short time right after you try to boot. Watch the LED while turning on the unit. However, if the Track 0 LED doesn't come on but the Disk 0 LED comes on, that indicates that the floppy controller is working and that it is trying to boot from Disk 0. The fact that that Track 0 light doesn't come on indicates that the diskette image wasn't downloaded to Disk #0 in the PC Software or that it wasn't downloaded to the SVD.
    Power
    Disk 0
    Disk 1
    Track 0
    Write
    If the Write LED is on, there isn't termination on the cable. You should use the terminated connector on the SVD or use a terminated real floppy on the same floppy cable. (see here for more info on termination).
    Power
    Disk 0
    Disk 1
    Track 0
    Write
    If the Disk 0 LED doesn't come on, the computer isn't trying to boot from the SVD. This indicates that the cable to the SVD (and other floppy drives) isn't connected correctly.
  6. If the Drive 0 and Track 0 lights both come on, then after a very short time, the Track 0 light should go out.
  7. If this all worked correctly, but the computer didn't boot, it probably means that you downloaded an incorrect floppy image. Try a different one.


Heathkit H89/Z89 - Trouble Shooting

Can't boot from the SVD

The above general trouble-shooting instructions should help quite a bit to get booting from the SVD.

Note, though, that the drive number indicator lights are reversed for the SVD when working with the H89 or H8. So if you still have an internal drive installed in the H89, and you have the SVD connected as both drives 1 and 2, this is what you should see:

Booting Drive 1 (SVD) Booting Drive 2 (SVD) Booting Drive 0 (Internal)
Power
Disk 0
Disk 1
Track 0
Write
It's nice that drive 1 is STILL drive 1 even though the wires are different in the floppy controller.
Power
Disk 0
Disk 1
Track 0
Write
Note that it LOOKS like the SVD is booting from Disk 0.
Power
Disk 0
Disk 1
Track 0
Write
Note that it LOOKS like the SVD is booting from Disk 2.

Heathkit H89 (Z89) - Supported Features

H17 emulator image format, and H8D raw data image format supported.
single-sided single density hard-sectored(SS SD HS)
single-sided single density soft-sectored(SS SD SS)
reading/booting the diskette image
writing the diskette image
formatting the diskette image
CP/M and HDOS support
downloading individual files - you can download individual BASIC programs or command files for HDOS and CP/M


Heathkit H89 - Links to Images

www.sebhc.org- It's rather tough to find Heathkit H8/H89 images...unless you know where to look. Jack Rubin and friends have created a great Heathkit site dedicated to preserving the old hardware and software. You must subscribe to the SEBHC user group to get to the archive. See this web-page for information about how to do so.
File ExtensionCommon MachineDescription
.h17 Heathkit One of the original formats for Heathkit H8/H89 floppy images, .h17 is a text-based (read "big") format that contains a sector by sector hex dump of the data on the disk. It includes descriptive information about the disk in the title as well. One of the nice things about this format is that it preserves the volume number of the diskette even if it is a CP/M diskette. For HDOS diskettes, the volume number is elsewhere on the image.
.h8d Heathkit The compact analog to the .h17 format is the binary .h8d format. This format is a binary dump of contiguous sectors from the floppy. It is assumed that there are 35 tracks of 10 256-byte sectors. So the size of these files is fixed. Note that this format is easily confused with many other binary dump formats. But, again, the SVD sorts things out pretty well...in this case based upon the file extension.
